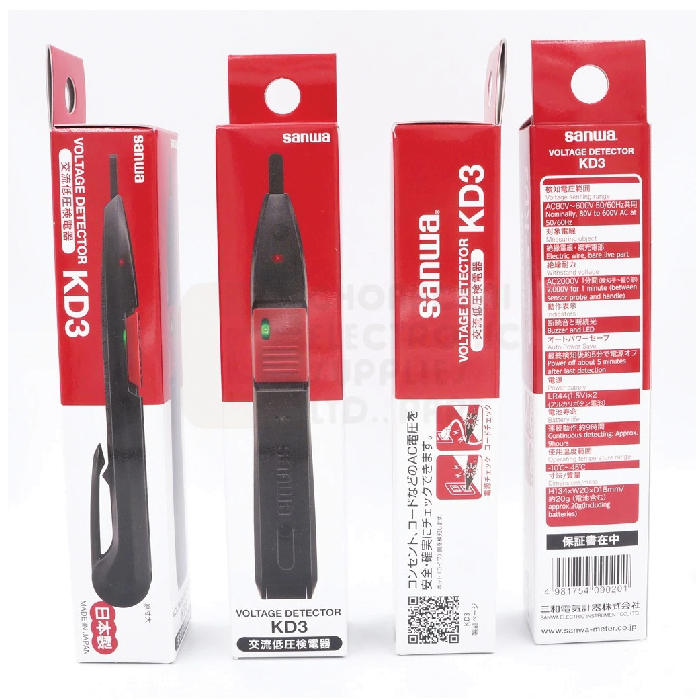

Sanwa ปากกาวัดไฟแบบสัมผัส รุ่น KD3

รหัสสินค้า: KD3 หมวดหมู่: Multimeter, Sanwa Multimeter, สินค้าอุตสาหกรรม ป้ายกำกับ: Sanwa, ปากกาวัดไฟ

รายละเอียดสินค้า

Detectable voltage range	80 to 600V AC, 50/60Hz HIGH: Works with IV2 mm jacketed electrical wire or equivalent LOW: Works with bare live part
Detection indicator	Red and green LEDs blinks; beep sound
Volume	50 dB or more at 50cm distance from beep emitter
Light intensity	Visible at 50cm distance from light emitting section with light intensity of 8,000 lux
Dielectric strength	1 min. at 2000V AC, from sensor to grip

Low battery warning	Beep sounds for 2 sec. when voltage falls below approx. 2.4 V and then power is turned OFF
Operating temperature/humidity range	Temperature: –10 °C to 45 °C; humidity: 80 % RH or less (no condensation)
Battery	LR44(1.5V)x2
Battery life	Approx. 9 hours of continuous operation (approx. 7 mA during detection, approx. 1.5 mA during standby) or 3 years in Auto Power Off or OFF mode
Auto Power Off mode	Approx. 5 min. since last detection, 2μA TYP
Size/Mass	H134xW20XD18mm/Approx. 20g
